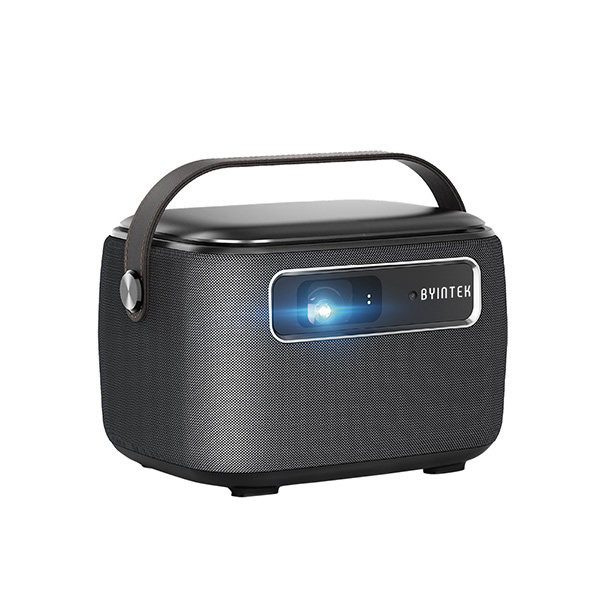

R20 Max Projector

Main Parameters

The BYINTEK UFO R20 Max is a portable projector with USA TI DLP technology, offering 1280×800 resolution, 750 ANSI lumens brightness, and a 15,000:1 contrast ratio. It uses an OSRAM RGB 3LED light source with up to 50,000 hours of lifetime. Includes TOF laser fast focus and a built-in 15,600mAh lithium battery that provides up to 2 hours of use (saving mode), 1.5 hours (standard), or 1 hour (bright).

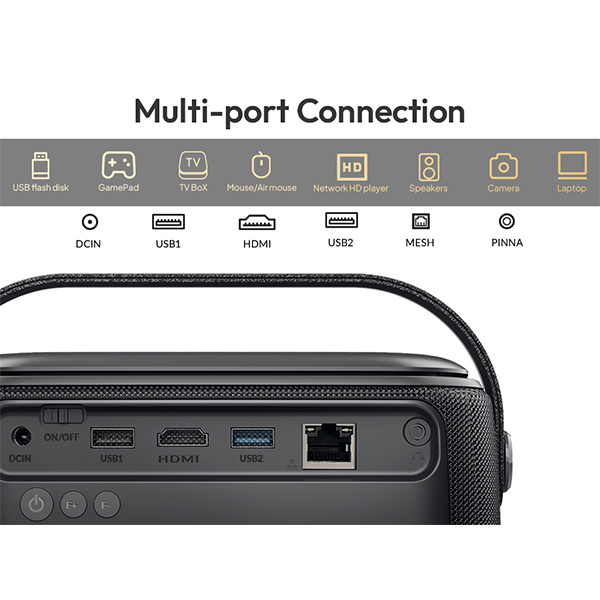

Input Interface

• 2× USB 2.0
• HDMI 2.0 ×1
• RJ45 (Ethernet)
• DC-in (DC19V 3.42A)

System Parameters

• System: Android OS 11.0
• App Download: Thousands of certified apps
• RAM + ROM: 2GB + 8GB
• Bluetooth: 5.0
• WiFi: Dual-band 2.4G / 5G
• WiFi Display: Chromecast (Android/Windows), AirScreen (iOS)

Projection Parameters

• Projection Method: Front, Rear, Front Ceiling, Rear Ceiling
• Projection Distance: 0.3m – 8m (0.98ft – 26.24ft)
• Projection Size: 11 – 300 inches
• Throw Ratio: 1.2:1
• Aspect Ratio: 16:9 / 4:3

Keystone Correction

Vertical keystone correction ±40° (auto/manual).
Corner keystone correction ±40° (manual only).

Sound

Built-in speakers 5W ×2, with 3.5mm headphone output and DLP-Link 3D support.

Power Consumption and Voltage

• Consumption: 65W
• Projector Voltage: DC19V/3.42A
• Adapter Voltage: AC100–240V, 50/60Hz

Languages

Supports 33 languages, including English, Spanish, Portuguese, French, Italian, German, Chinese, Japanese, Arabic, Hebrew, Russian, and more.

Package Details

• Projector Size: 18 × 14 × 12.8 cm / 7.09 × 5.52 × 5.04 in
• Projector Weight: 1.443 kg / 3.18 lb
• Package Size: 26.5 × 25.5 × 18.5 cm / 10.44 × 10.04 × 7.29 in
• Package Weight: 2.42 kg / 5.33 lb

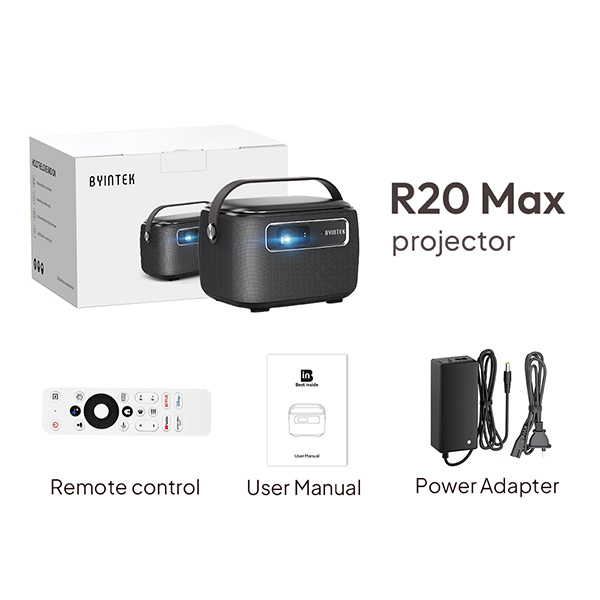

• Accessories included: Remote Control, Power Adapter, User Manual
